產品介紹 |
|
|
|
| 產品編號 |
A9F74103 |
| 產品簡稱 |

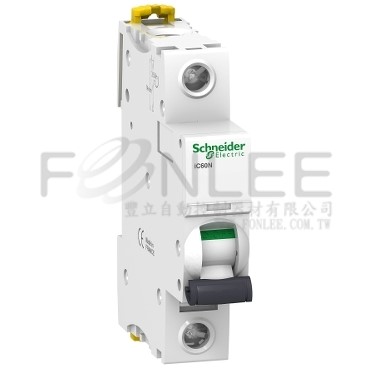

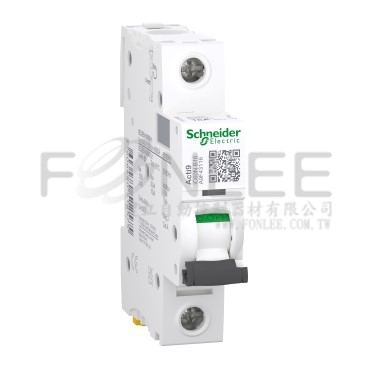

iC60N - 微型斷路器 - 1P - 3A - C curve |
| 產品描述 |
This Acti 9 iC60N is a low voltage 微型斷路器 (MCB). It is a 1P circuit-breaker with 1 protected pole, 3A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 6000A at 230VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 50kA at 230VAC. This 微型斷路器 protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. |
| 官網 |
前往 |
| 型錄 |
下載 |
| 產品參數表 |
下載 |
| 認證資料 |
REACH文件 |
RoHS文件
|
| 合格日期 |
1907 |
RoHS |
符合 |
| ETIM-6.0 |
EC000042 |
停產日期 |
|
| 產品編號 |
NCMGA9F74103 |
| 產品名稱 |
M/G 斷路器 Acti-9 iC60N 1P3A 10KA
A9F74103 |
| 產品描述 |
Acti-9 iC60N 1P 3A C
|
| 尺寸 |
|
| 型錄 |
|
| 產品圖 |
| 1 |
 |
18 KB |
|
|
| 說明書 |
|
| 規格 |
| 1 |
NCMGA9F741.PDF |
645 KB |
|
| 2 |
NCMGA9F7.PDF |
645 KB |
|
|
| 官網 |
|
| 型錄 |
|
| 產品參數表 |
|
| 認證資料 |
|
| 合格日期 |
|
RoHS |
|
| ETIM-6.0 |
|
停產日期 |
|
|
點圖放大
